The Dual VR condicioner converts the signal from trigger wheel sensor to digital signal (0-5V DC) supported by Speeduino.
Based in MAX9926 chip, it has 2 inputs and 2 outputs, allowing to convert the crank and cam sensors.
Supports:
- Variable relutance sensors (AC signal)
- Non digital sensors (DC signal ≠ 0-5V)
Condicionador VR (MAX9926)

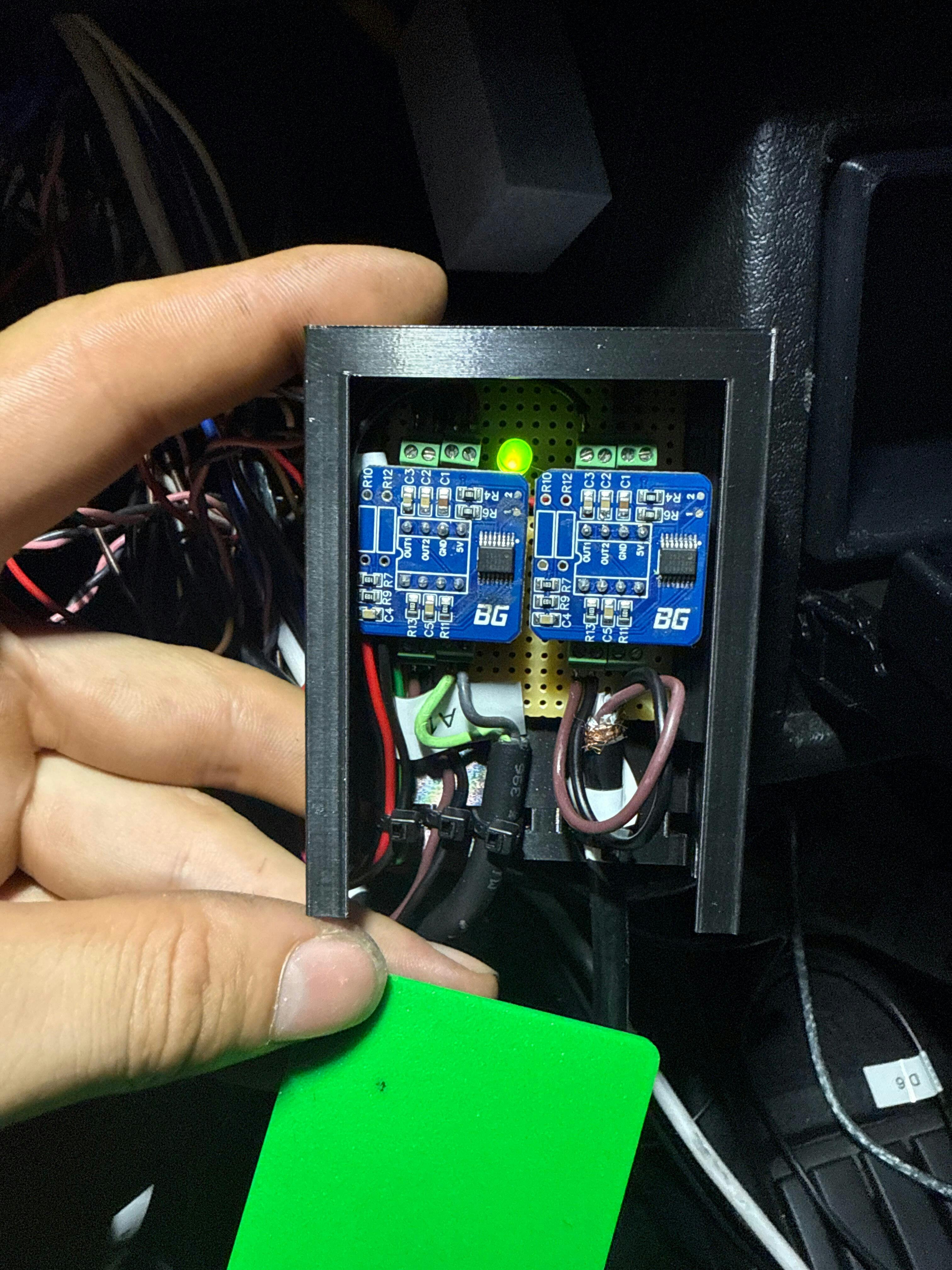

I use the boards to get the signal from my Golf MK2 ABS sensors to the MaxxECU. It works very well. The delivery to Germany was very fast.
Thank you for your excellent feedback, Jonas
That’s a new application I hadn’t seen before, very cool!
I’m glad to know it works well with your setup!!!
I have use this device to replace a design based in discrete components. It is amazing, all the issues are gone.
Good quality and quick shipped! Be carefull with wiring up, incorrect polarity of input VR+/VR- can create some erractic RPM readings by microcontroller
