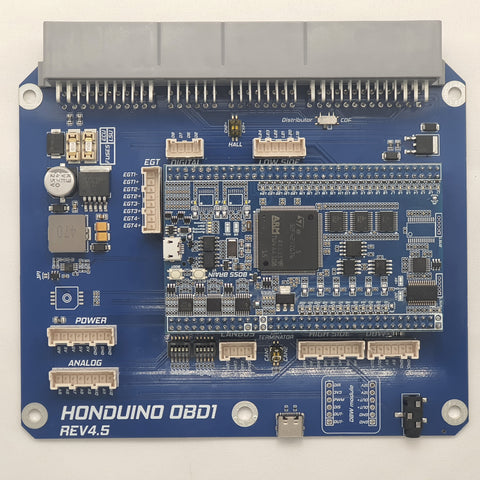

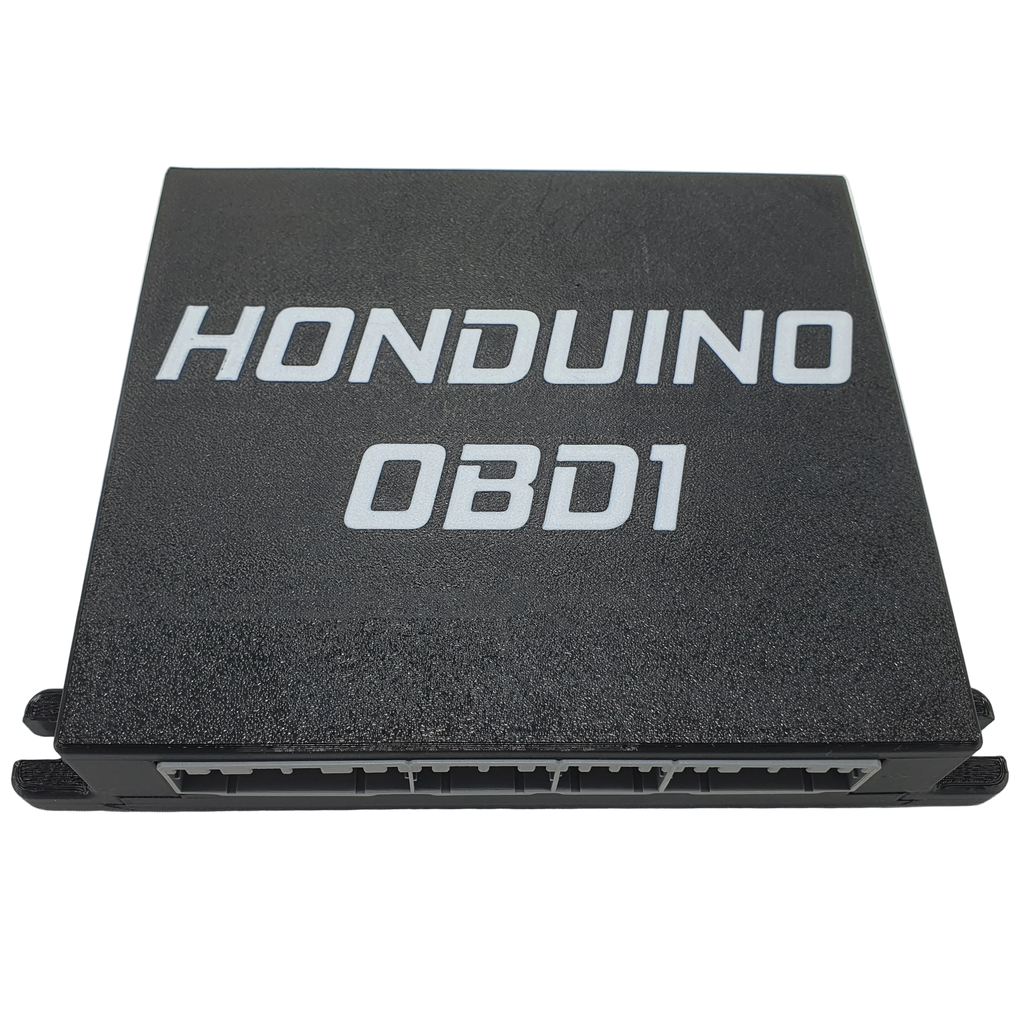

Honduino OBD1

Honduino OBD1 PRO is a programmable ECU designed for Honda multipoint engines. It’s compatible with OBD0, OBD1, OBD2a, or OBD2b engine harnesses.

Key Advantages:

• Plug and Play: Connects directly to the original wiring with no modifications required.
• Coil-on-plug: Supports conversion to individual ignition coils.
• Drive-by-Wire: Supports conversion to electronic throttle or ITBs.
• Wideband: Built-in LSU 4.9 wideband controller.
• Knock: Integrated knock sensor monitoring.
• EGT: Allows individual cylinder exhaust gas temperature monitoring.

Motorsport Features:

• Launch control 🔥
• Anti-lag 🔥🔥🔥
• Flat foot shifting
• Boost by gear

Technical information:

Inputs:
- 2x VR inputs (trigger wheels 12+1, 16+1, 24+1)
- 8x digital inputs (hall sensors, ground switches)
- 14x analog inputs (0-5V pressure/temperature sensors, knock)
- 4x EGT inputs
- Onboard barometer

Outputs:
- 24x low side outputs (injectors, valves, solenoids, ground)
- 12x high side outputs (coils, 5/12v)
- 1x saída full bridge (eletric throttle body)
- 1x wideband controller

Communication:
- USB / Bluetooth
- CAN BUS
- Datalog to sd card

Compatible with MPFI engines and manual gearbox:

• B series:
  🔵 OBD0 - (B16A 1st gen, B16A1, B18A1, B18A2)
  🟢 OBD1 - (B16A 2nd gen, B16A2, B16A3, B18C4)
  🟣 OBD2a - (B16A 2nd gen, B18XX)

• D series:
  🔵 OBD0 - (D15B6, D16A3, D16A6, D16A7, D16A8, D16A9, D16Z5, DOHC ZC)
  🟢 OBD1 - (D13B4, D14A2, D14A5, D15B5, D15B7, D15B8, D15Z1, D15Z3, D15Z8, D16A7, D16A8, D16A9, D16W7, D16Y1, D16Y2, D16Y3, D16Z6, D16Z9, SOHC ZC VTEC)
  🟣 OBD2a - (D15Z6, D16Y5, D16Y7, D16Y8)
  🟠 OBD2b - (D13B7, D14Z1, D14Z2, D15Z6, D16W4)
  🟡 OBD2 a ou b - (D15Y3, D15Y4, D15Z7, D16B5, D16W5, D16W9, D16Y4)

• F series
• H series:
  🟢 OBD1: (H22A, H22A5)

Tested engines:
